S21 PTFE Bellow External Mounted Seal

Get a Price/Quote

MOQ : 1 Unit

S21 PTFE Bellow External Mounted Seal Specification

Application
Corrosive Chemicals, Acids, Solvents

Hardness
High (based on Ceramic, PTFE)

Theory
Bellow Seal Principle

Style
External Mounted

Material
GFT, PTFE, Ceramic, SS-316, SS-304, Monel, Alloys-20

Temperature
-306C to 1206C Celsius (oC)

Pressure
Up to 10 Bar Bar

Speed
Up to 4000 rpm RPM

Function
Leakage Prevention

Size
25mm to 100mm Shaft Diameter

Structure
PTFE Bellow with Covered Spring

Direction of Rotation
Unidirectional

Metal Parts
SS-316, SS-304

Seal Type
Single

Secondary Seal
PTFE Bellow, Gasket

Shaft Sleeve
Optional

Suitable for
Non-metallic Pumps

Rotary Face
GFT, PTFE

Corrosion Resistance
Excellent

Mounting
Outside Shaft

Spring Type
PTFE Covered

S21 PTFE Bellow External Mounted Seal Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About S21 PTFE Bellow External Mounted Seal

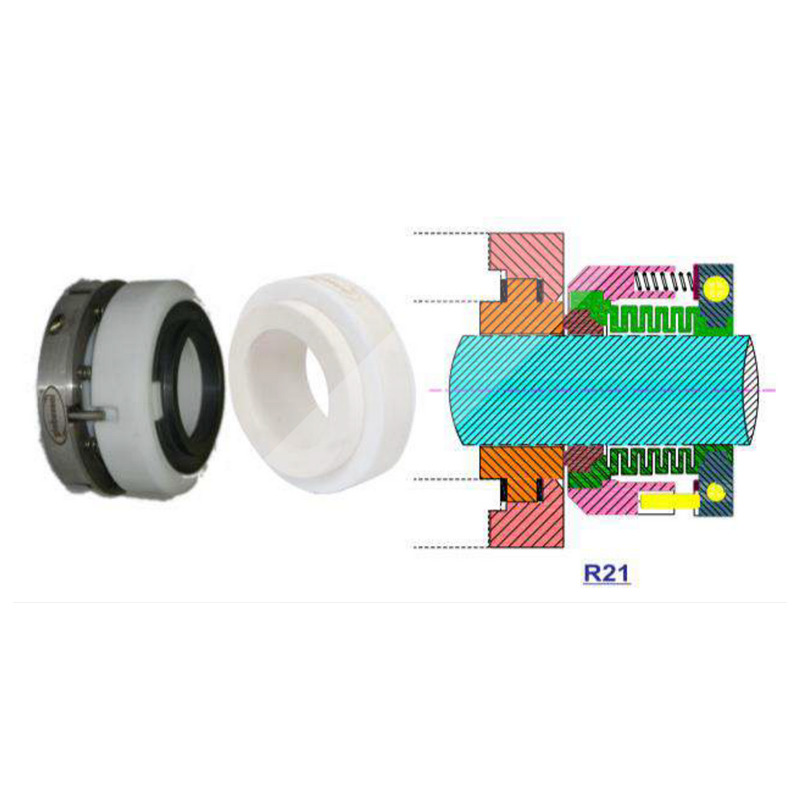

It is a Seal Similar to type (M021/R21) in Design with Replaceable Dynamic Ring.
This Permits Easy Removal Replacement of The Dynamical Ring.

Shop Now for the new release S21 PTFE Bellow External Mounted Seal-crafted for those seeking kingly performance and superior value. This best-in-class seal, spotlighted for its PTFE covered single spring and robust SS-316/SS-304 construction, ensures exceptional corrosion resistance and optimal leakage prevention. Designed for non-metallic pumps, its external mount and PTFE bellow suit aggressive chemicals, acids, and solvents. With reliability at speeds up to 4000 rpm, unidirectional rotation, and compatibility with shaft diameters from 25mm to 100mm, it stands as the ultimate solution for demanding industrial needs.

Applications & Usage of S21 PTFE Bellow External Mounted Seal

The S21 PTFE Bellow External Mounted Seal is kingly suited for non-metallic pumps in industries handling corrosive chemicals, acids, and solvents. Its superior corrosion resistance makes it the best choice for chemical processing, pharmaceutical, and petrochemical applications. Engineered for unidirectional shaft rotation and external mounting, it is optimal for use where non-contact with pumped media is essential. This seal guarantees leak prevention under high pressure, making it indispensable for harsh environments demanding utmost reliability.

Supply Ability, Shipping & Payment Terms for S21 PTFE Seal

Benefit from our efficient supply ability with the S21 PTFE Bellow External Mounted Seal, available for prompt dispatch from India. Orders are shipped speedily, with express shipping options accessible upon request. Obtain a detailed quotation tailored to your needs. We offer flexible payment terms accommodating varied business circumstances. For initial evaluation, sample policies are designed to provide hands-on product experience before large-scale commitment, ensuring customer satisfaction every step of the way.

FAQ's of S21 PTFE Bellow External Mounted Seal:

Q: How does the S21 PTFE Bellow External Mounted Seal prevent leakage?

A: The seal utilizes a PTFE bellow and high-quality external mounting, creating a reliable barrier that prevents leakage even when exposed to aggressive chemicals or solvents. Its superior construction and robust internal gasket further enhance sealing integrity.

Q: What are the primary areas of application for this seal?

A: The S21 PTFE Bellow External Mounted Seal is primarily used in non-metallic pumps handling corrosive chemicals, acids, and solvents, especially within chemical processing, pharmaceutical, and petrochemical sectors.

Q: When should I choose the S21 PTFE Bellow External Mounted Seal over other types?

A: This seal is ideal for scenarios where exceptional corrosion resistance is necessary, and an external, non-contact installation is preferred-particularly for non-metallic pumps operating in hazardous environments.

Q: Where does the S21 PTFE Bellow External Mounted Seal excel in performance?

A: It excels in applications with pressures up to 10 Bar and temperatures ranging from -306C to 1206C, offering excellent resistance and durability even at high shaft speeds up to 4000 rpm.

Q: What materials is the S21 PTFE Bellow External Mounted Seal made of?

A: The key materials include PTFE, GFT, ceramic, SS-316, SS-304, Monel, and Alloys-20, ensuring longevity and corrosion resistance against aggressive chemicals.
