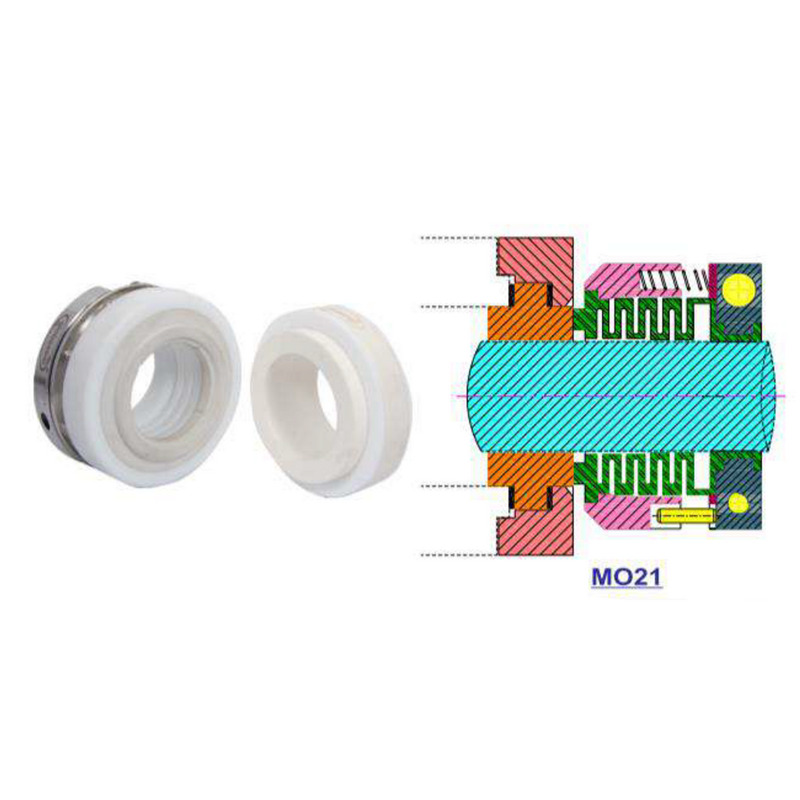

PTFE Bellow External Mounted Seal Series

Send Inquiry

Request To Call Back

PTFE Bellow External Mounted Seal Series

Get a Price/Quote

MOQ : 1 Unit

PTFE Bellow External Mounted Seal Series Specification

Theory
Balanced mechanical seal

Application
Corrosive fluids, acids, alkalis

Style
External Mounted

Material
PTFE Bellow, Ceramic, SS-316, SS-304, Monel, Alloys-20

Temperature
-30C to 120C Celsius (oC)

Pressure
up to 10 Bar Bar

Speed
up to 4000 rpm RPM

Function
Sealing rotary shafts

Size
Shaft diameter 10mm-100mm

Structure
PTFE bellow with external mount

Maintenance
Easy to install

Mounting Type
External

Shaft Fitment
Wide range

Spring Material
SS316, Hast-C, Alloy-20

Rotary Face
GFT, PTFE, CFT

Secondary Face
Ceramic

Chemical Resistance
High

Metal Components
Multiple alloys available

Seal Design
Single bellow type

Secondary Seal
Gasket included

PTFE Bellow External Mounted Seal Series Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About PTFE Bellow External Mounted Seal Series

In this Seal type Glass filled PTFE Face is Composite moulded with Highly Flexible PTFE Bellow.

Explore the crowning innovation in mechanical sealing with our PTFE Bellow External Mounted Seal Series. Engineered for superior chemical resistance and effortless installation, these trending seals excel in demanding environments dealing with corrosive fluids, acids, and alkalis. The superlative design incorporates a single PTFE bellow, commanding rotary face options and robust metal alloys, including SS316, Hast-C, Alloy-20, and more. Affordable and reliable, these seals offer balanced pressure capability up to 10 Bar and perform at speeds up to 4000 rpm, delivering outstanding reliability and versatility for various plant applications across India.

Maximum Reliability for Plant Applications

The PTFE Bellow External Mounted Seal Series is ideal for critical industrial settings such as chemical processing plants, pharmaceutical units, and water treatment facilities. Its extra features-high-pressure tolerance, broad shaft compatibility, and external mounting-make it suitable for sealing rotary shafts in harsh environments. The advanced PTFE and ceramic build ensures long life on surfaces exposed to acids and alkalis, providing unwavering performance amidst fluctuating operational demands.

Seamless Delivery and Packaging Solutions

Our PTFE Bellow External Mounted Seal Series is delivered through major FOB ports across India. With a commanding supply ability, we ensure your ordered and shipped goods are safely handover in premium packaging, safeguarding against transit damage. Every product is securely boxed and supported by clear documentation, guaranteeing that every customer receives pristine, ready-to-install components upon delivery, matched precisely to specified shaft diameters and industrial requirements.

FAQ's of PTFE Bellow External Mounted Seal Series:

Q: How does the PTFE Bellow External Mounted Seal perform in highly corrosive environments?

A: The PTFE bellow and ceramic secondary face offer commanding chemical resistance, making the seal exceptionally reliable in harsh conditions involving acids, alkalis, and corrosive fluids.

Q: What shaft sizes and fitment options are supported by this seal series?

A: The series caters to a wide range of shaft diameters, specifically from 10mm to 100mm, ensuring compatibility with various rotary equipment commonly used in industrial plants.

Q: When is it recommended to use an externally mounted bellow seal?

A: External mounting is ideal when frequent maintenance or inspection is needed, or when the process fluid conditions require the seal to remain outside the product chamber for enhanced service life.

Q: What is the installation process for these mechanical seals?

A: The design emphasizes ease of installation-simply position the seal on the shaft, secure it using standard fixing methods, and connect the external components for immediate use.

Q: Where can these seals be applied in a manufacturing facility?

A: These seals are suitable for pumps, mixers, and reactors handling aggressive fluids in chemical, pharmaceutical, petrochemical, and water treatment plants.

Q: What benefits does the balanced mechanical seal theory provide?

A: The balanced design helps lower face load, reducing wear and enabling use at higher pressures without compromising the seal's integrity.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

More Products in Mechanical Seal Category

UJ72 Rubber Bellow Unbalance Seal Series

Minimum Order Quantity : 1 Unit

Material : Other, Carbon, Ceramic (99.5%), SIC, T.C.

Size : 10 mm to 100 mm

Structure : Single coil spring, unbalanced

Pressure : 16Bar Bar

Temperature : 20deg C to 200deg C Celsius (oC)

Get a Price/Quote

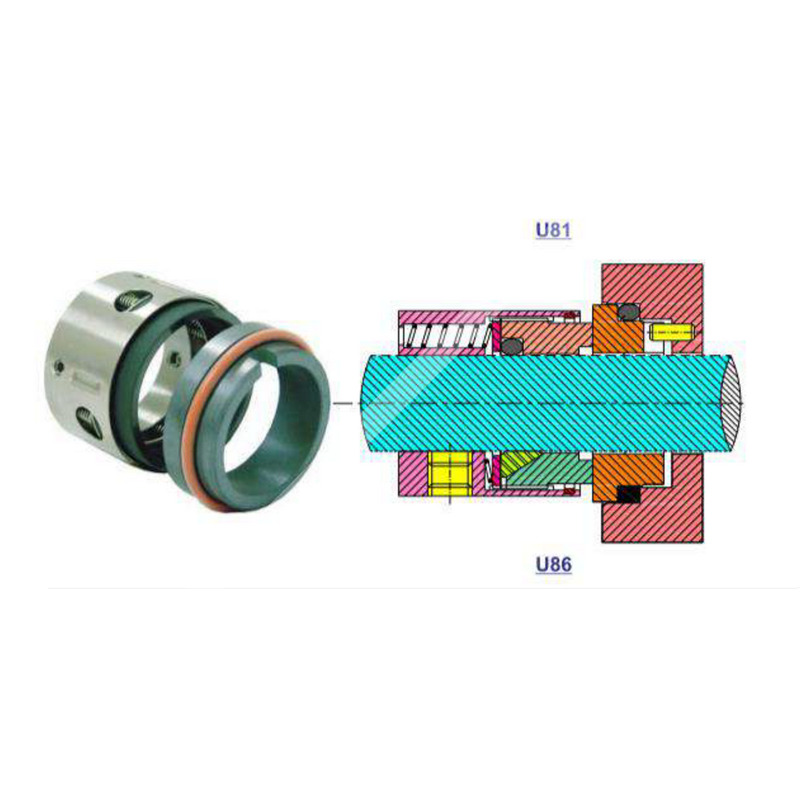

U81-U86 Multi Spring Unbalance Seal Series

Minimum Order Quantity : 1 Unit

Material : Other, Carbon, Ceramic (99.5%), SIC, T.C. / SS316, SS304, HastC, Menol, Alloy20

Size : Shaft Diameter 12 mm to 100 mm

Structure : Multi Spring, Cartridge, Unbalanced

Pressure : 10 Bar Bar

Temperature : 60C to 260C Celsius (oC)

Get a Price/Quote

MB61 & MB66 Metal Bellow Inherently Balanced Seal Series

Minimum Order Quantity : 1 Unit

Material : Other, Face: CarbonM, SIC, T.C.; Welded Bellow: AM 350; Hardware: AISI 316, SS 304, Carpenter42; Secondary Seal: MB61, Viton, Kalrez MB66Grafoil FEP, CFT.

Size : Shaft Diameter: 10mm to 100mm

Structure : Metal bellows design

Pressure : 25 Bar Bar

Temperature : 20C to 400C Celsius (oC)

Get a Price/Quote

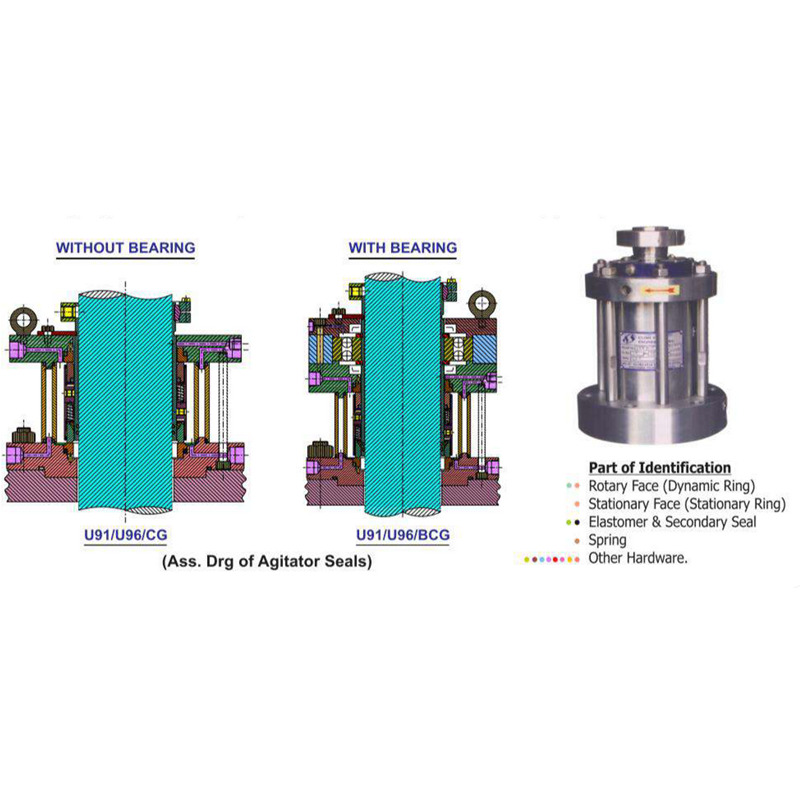

U91-U96-BCG Agitator Double Acting Unbalance Seal
