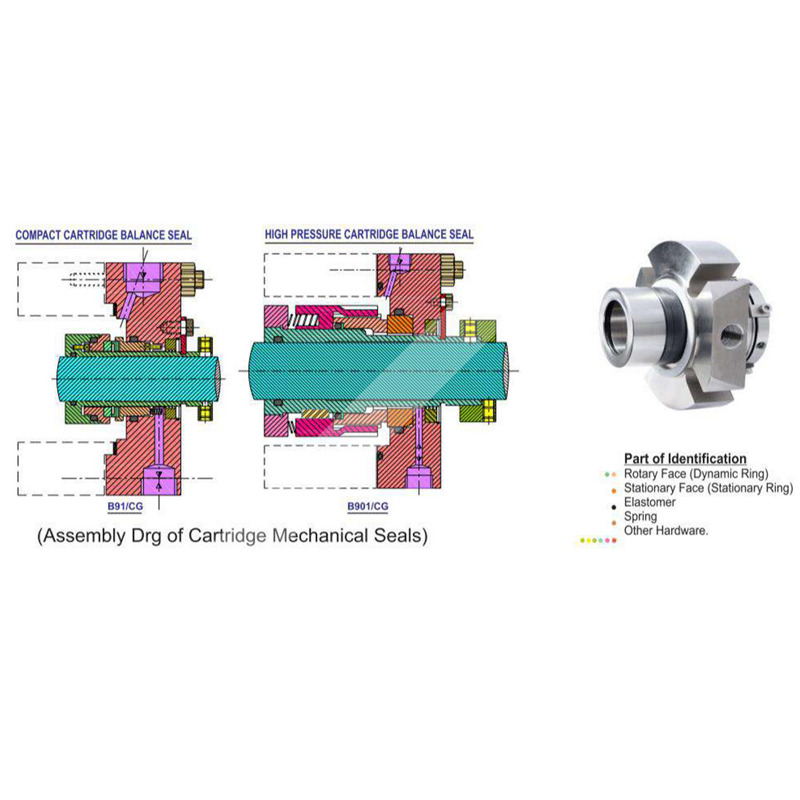

B91-CG & B901-CG Cartridge Balance Seal

Get a Price/Quote

MOQ : 1 Unit

B91-CG & B901-CG Cartridge Balance Seal Specification

Application
Pumps, Compressors, Process Industry

Theory
Mechanical seal

Hardness
Up to 92 HRA

Style
Single cartridge, balanced

Material
Carbon, Ceramic (99.5%), Silicon Carbide, Tungsten Carbide, Chrome Cast Steel, SS-316, Hastelloy-C, Monel, Alloy-20, Viton, EPDM, Silicon, Aflas, PTFE, GFT, TCV, FEP, Kalrez

Pressure
Up to 40 bar Bar

Speed
Up to 5000 rpm RPM

Function
Cartridge balance mechanical seal

Size
25mm to 100mm

Structure
Cartridge type with balanced configuration

Elastomer Type
O-Rings & gaskets

Stationary Ring
Precision flatness

Rotary Face
Lapped finish

Spring Type
Multiple springs

Shaft Fitment
Set screw design

Direction
Bi-directional

Mounting
Easy installation

Seal Faces
Customizable materials

B91-CG & B901-CG Cartridge Balance Seal Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Units Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About B91-CG & B901-CG Cartridge Balance Seal

Application :

Sludge & Syrup Pump
Slurry Pump
Chemical, Petrochemical & Refinnery
Pulp & Paper
Boiler Feed Water Pump
Oil Pipeline Pumps
Clinker Grinders

Operating Limits :

Shaft Diameter :- 18mm to 100mm (0.75" to 4.0")
Pressure :- 5 to 35 Bar (kg/cm)
Temperature :- -20° C to 300° C
Shaft Speed :- Upto 4000 RPM According to Shaft Size & Pressure.

Seal Characteristics :

Balanced
Single Acting
Independent of Direction of Rotation
Sturdy Drive Mechanism
Stationery Multiple Spring

Discover the popular B91-CG & B901-CG Cartridge Balance Seal, an exceptional solution designed for discerning industry professionals. Redeem the benefits of radiant engineering with its noteworthy features: lapped rotary faces, precise stationary rings, and bi-directional performance. This cartridge seal offers easy installation, a set screw shaft fitment, and customizable seal face materials including Carbon, Ceramic (99.5%), Silicon Carbide, and more. Suited for pumps and compressors in process industries, it handles temperatures from -20C to 220C, pressures up to 40 bar, and speeds up to 5000 rpm-all available to buy online from a leading manufacturer and supplier in India.

Versatile Use and Distinct Features of B91-CG & B901-CG Cartridge Balance Seal

B91-CG & B901-CG Cartridge Balance Seals are used for advanced sealing applications in pumps, compressors, and process industries. Special features include a lapped finish rotary face, precision flatness stationary ring, and robust multiple springs, ensuring bi-directional sealing. The easy-install cartridge style, customizable seal faces, and a range of elastomer materials allow seamless operation across demanding industrial settings, providing exceptional reliability and prolonged service life.

Payment Terms, Samples, and Port Information for Seamless Transactions

Our payment terms for the B91-CG & B901-CG Cartridge Balance Seal ensure a secure and transparent purchase process. Exchange or sample charges may apply based on quantity and delivery terms. Sale price is provided upon inquiry, and samples can be redeemed under our defined sample policy. All products are shipped from a reliable FOB port in India, streamlining your procurement process for these noteworthy cartridge balance seals.

FAQ's of B91-CG & B901-CG Cartridge Balance Seal:

Q: How does the B91-CG & B901-CG Cartridge Balance Seal enhance equipment performance?

A: The B91-CG & B901-CG Seal delivers exceptional sealing with its balanced configuration, reducing leakage and prolonging equipment lifespan in pumps and compressors, thus providing radiant reliability.

Q: What are the main applications for these cartridge balance seals?

A: These seals are used in process industries, specifically in pumps and compressors, and are suited for environments requiring bi-directional sealing, high speed, and variable temperature conditions.

Q: Where can I buy the B91-CG & B901-CG Cartridge Balance Seal online?

A: You can conveniently buy the B91-CG & B901-CG Seal online from reputable manufacturers and suppliers based in India, ensuring Genuine Sale price and quality.

Q: What materials are available for customizing the seal faces?

A: The seal faces can be customized using materials such as Carbon, Ceramic (99.5%), Silicon Carbide, Tungsten Carbide, Chrome Cast Steel, SS-316, and many high-performance elastomers.

Q: What is the process for redeeming a product sample?

A: To redeem a sample, you can request as per our sample policy, which may include a sample charge or exchange, depending on your requirements and order volume.

Q: When should these seals be used in industrial operations?

A: These seals are ideal when you need a noteworthy and durable solution for handling high pressure, temperature ranges from -20C to 220C, and shaft speeds up to 5000 rpm.
